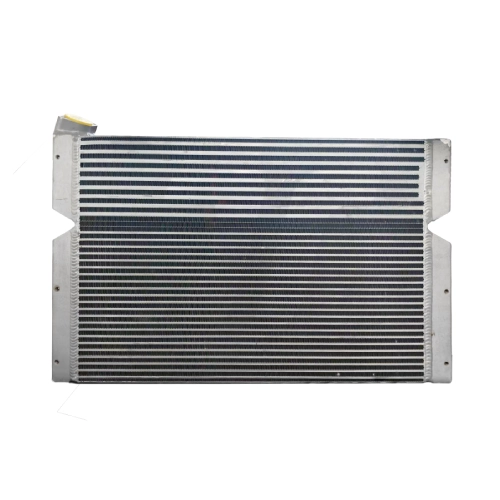

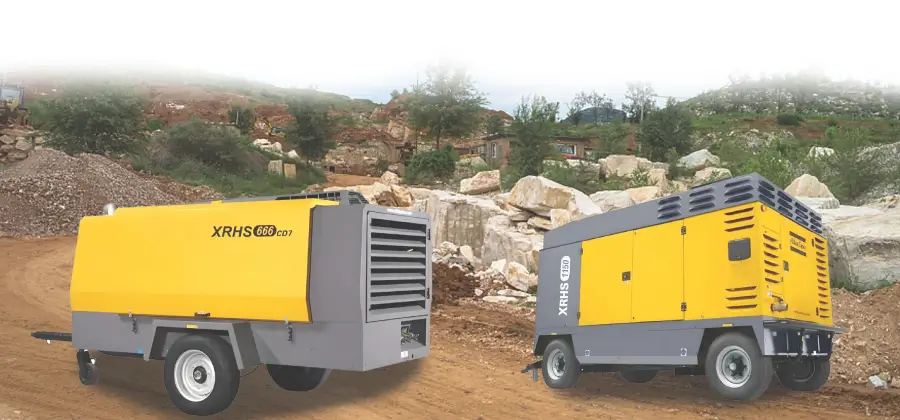

Portable Air Compressor Radiator

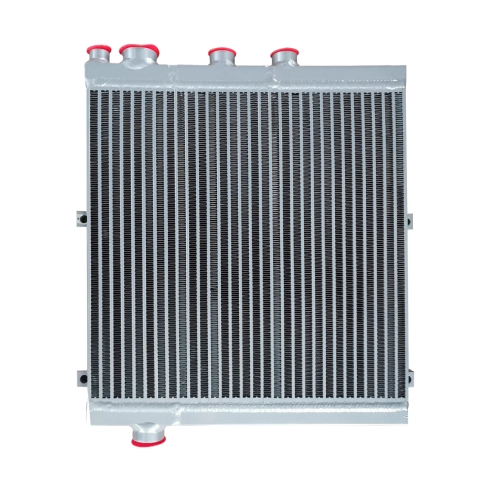

Mobile air compressor radiator core 1
Mobile air compressor radiator core 1
Mobile air compressor radiator core 5
Mobile air compressor radiator core 6
Mobile air compressor radiator core

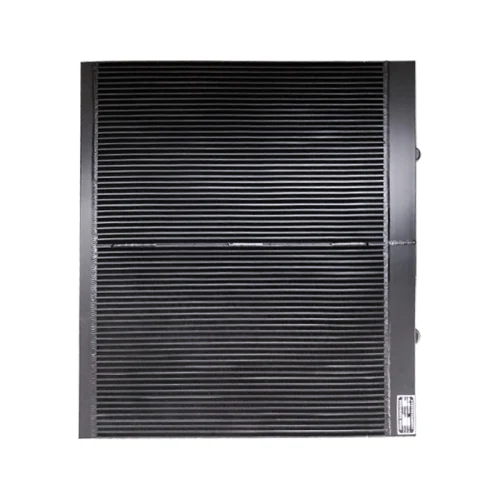

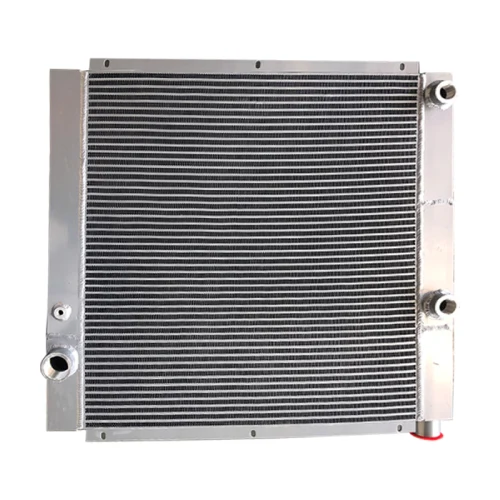

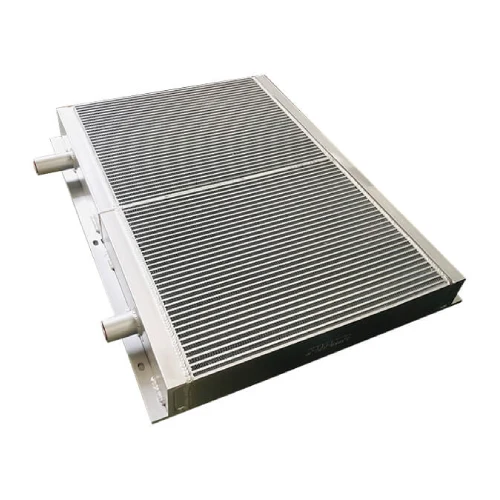

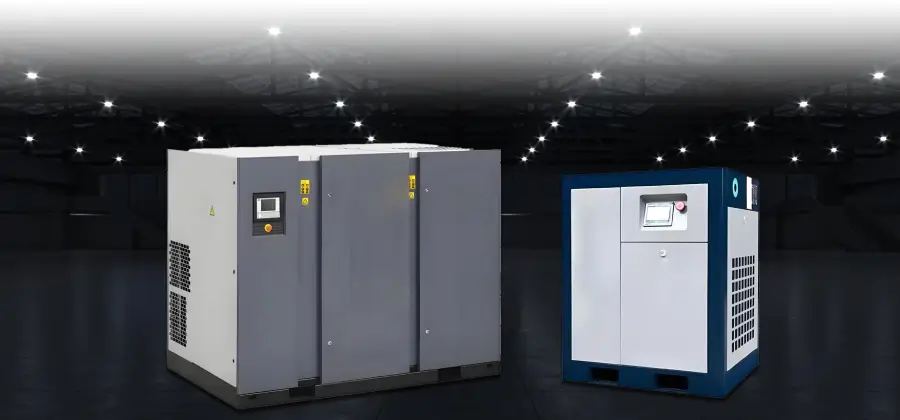

Stationary Air Compressor Radiator

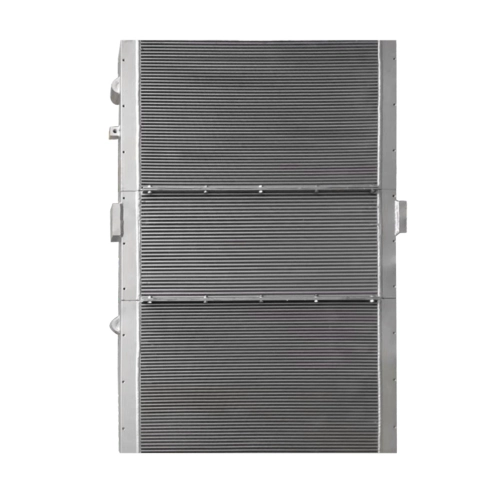

Fixed air compressor radiator core 1
Fixed air compressor radiator core 2
Fixed air compressor radiator core 7
Fixed air compressor radiator core 8
Fixed air compressor radiator core

Reliable heat exchangers are critical to manufacturing and production

CHINA SHENG's engineers optimized and improved the product structure and welding process based on the harsh working environment and large changes in operating conditions of mobile compressors, which improved efficiency and service life, and applied for a patent.

CHINA SHENG's engineers have modified and improved technical performance according to the technical needs and characteristics of fixed compressors. The structure and production process of core has been optimized, leatest heat exchangers has been developed with higher efficiency. This has greatly extended the service life of our products.

Reduce Downtime

Minimize production downtime with expert maintenance and fast repairs

Improve Efficiency

Improve cooling efficiency to reduce energy and process costs

Ensure Compliance

Ensure environmental and safety compliance with certified cleaning and upgrades

Combat Corrosion

Extend heat exchangers life with corrosion-resistant materials and custom retrofits

Regular Parameters of coolers on air compressor

Motor power(KW/HP) Max.working pressure(Bar) Air displacement(m3/min) Displacement temperature(oC) Oil quantity Imput temperature(oC) Radiator power(KW) Core dimension(mm)
5.5/7.5 1.6 0.8 90 6 25 2.8 300*418*40
7.5/10 1.6 1.2 90 6 25 3.2 350*418*40
11/15 1.6 1.8 90 10 25 4.8 400*470*50
15/20 1.6 2.6 90 10 25 5.6 450*470*50
18.5/25 1.6 3 90 10 25 6 480*500*65
22/30 1.6 3.7 90 25 25 11.3 650*600*70
30/41 1.6 5.4 90 25 25 13 750*650*75
37/50 1.6 6.8 90 25 25 14.5 750*650*80
45/61 1.6 8 90 25 25 15.5 750*650*85
55/75 1.6 10 90 30 25 18.5 800*720*85
60/82 1.6 11 90 30 25 19.5 820*720*85
75/102 1.6 12 90 30 25 20.5 850*720*90
90/122 1.6 18 90 60 25 30 950*800*113
100/136 1.6 13.6 90 60 25 31 980*823*120
110/150 1.6 15.2 90 60 25 32.3 1010*980*125
120/163 1.6 17 90 60 25 34 1020*1000*125
132/180 1.6 20 90 60 25 37 1120*1100*130
160/218 1.6 28 90 90 25 51 1300*1200*140

Environment temperature: 35oC

The above parameter and data are for reference. The actual data is formulated according to the actual customer's parameters.

Direct Technical Director: +86 15061814831

Customize your core (OEM / ODM)

Have an idea in mind?

Bring the ideas you need to life

We focus on working closely with our customers to ensure that every project is refined to meet or exceed customer expectations. Choose us, you will get quality products, reliable delivery and competitive prices, let us work together to create a better future!

CUSTOMER DRAWINGS

If you can provide drawings of the required products, you can contact us directly. We hope your drawings are accurate enough so that we can produce suitable products. Of course, our professional engineers can also optimize and redesign products based on existing drawings.

CUSTOMERS TO SAMPLE

If you can provide samples, you can contact us directly. We support production according to your samples, you can contact us to confirm the production cycle before sending samples.

DESIGN PARAMETERS

If you can provide product specifications, you can contact us directly. We have experienced engineers who can design according to the parameters you provide. We not only produce heat exchangers, but also provide complete heat exchanger solutions. We welcome communication with you.

STANDARD PART NUMBER

If you can provide the standard part number of the product, you can contact us directly. We are one of the suppliers of large brands and have stable partners all over the world. Whether in the field of air compressors or construction machinery, you can provide the standard part number of the required product, we produce the right product for you.

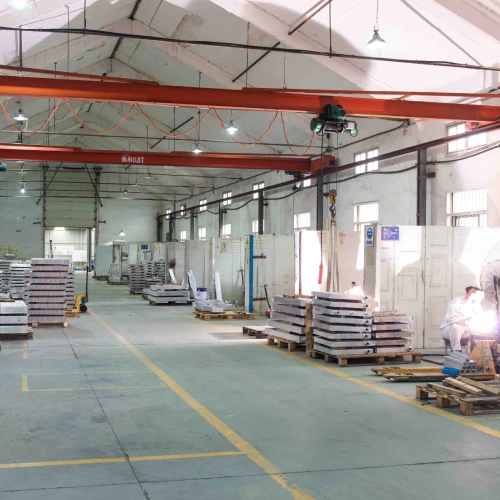

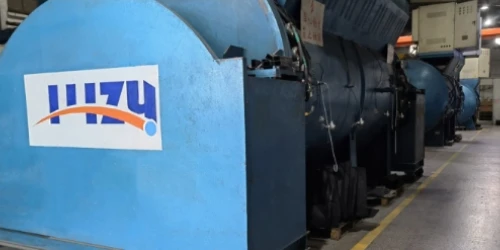

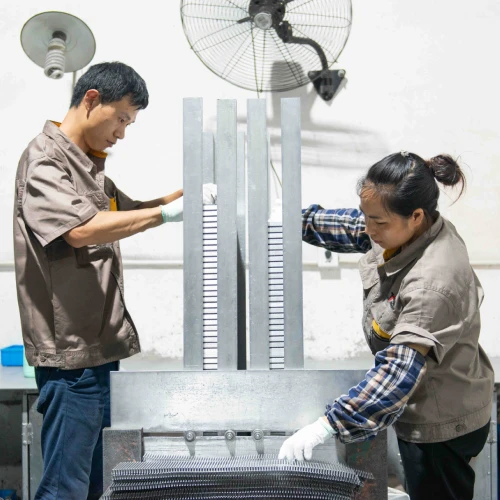

The company's real map

About us

Over the past 15 years, Wuxi Jiushengyuan Science & Technology Co., Ltd.(CHINA SHENG) has been dedicated to the research, design, and manufacturing of aluminum leakproof heat exchangers, currently standing at the forefront of the industry in China. Continuous improvement is the core pursuit of CHINA SHENG. Through relentless efforts, the company’s heat exchangers now feature high heat exchange efficiency, superior leakproof performance, and industry-leading quality, supported by more than 30 patent applications. Equipped with advanced vacuum brazing furnaces, 4th-generation cleaning equipment, and a comprehensive set of production, manufacturing, inspection, and performance testing facilities, CHINA SHENG ensures top-tier product excellence.

CHINA SHENG’s leakproof heat exchangers utilize a unique 9S Leakproof System to address overheating and leakage issues in industrial equipment, establishing the company as a global leader in leakproof heat exchanger technology. Serving over 100 renowned brands worldwide, CHINA SHENG has earned more than ten prestigious titles and awards as an outstanding supplier.

Let's Talk About Your Project!

* Welcome to the field

Our Customers

cooperative partner 1
cooperative partner 2
cooperative partner 3
cooperative partner 4
cooperative partner 5
cooperative partner 6
cooperative partner 7
cooperative partner 8

At present, our cooperative customers include mining machinery, construction machinery, agricultural and forestry machinery manufacturing and other industries.

What We Discussing

Diverse Clients, Diverse Needs: Varying Product Applications, Structural Variations, and Material Selections.We strive to meet the diverse needs of our clients to the fullest extent possible

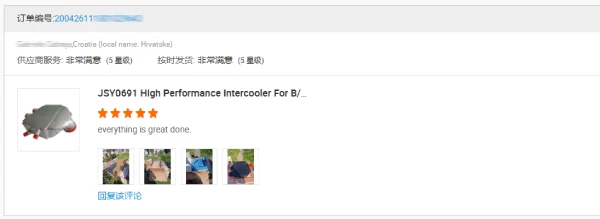

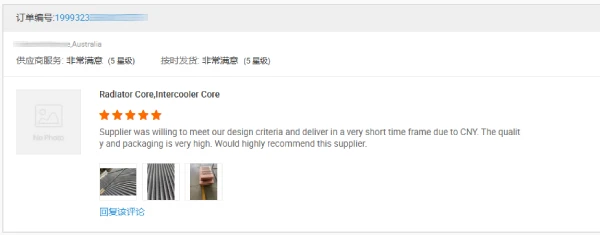

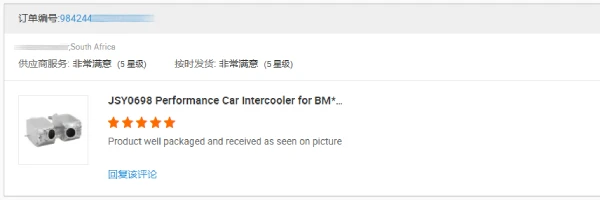

Estimation 1
Estimation 2
Estimation 3
Estimation 4
Estimation 5
Estimation 6
Estimation 7
Estimation 8

Why Choose US

  • Air Compressor Radiator Experts: Relying on the “9S Anti-Leakage Technology System,” we partner with 70% of domestic air compressor OEMs.
  • Fast Delivery: Standard delivery within 30 days; special sample orders shipped within 2 weeks.
  • Extensive Product Range: Over 10,000 self-developed customized SKUs, enabling a unique positioning of “cost-effectiveness + rapid response.”

FAQs

Q: Do your products have their own patents?
A: Yes, our products have more than 30 domestic and international invention patents.
Q: What countries do you sell to?
A: Our products are exported to USA, Mexico, Brazil, Canada, UK, France, Germany, Turkey, Italy, Russia, Japan, Korea, Malaysia, India and other countries.
Q: Is it easy to leak in harsh environments?
A: Adopting aerospace-grade brazing process, it has passed 3,000 times of pressure cycle test (with EN13133 certification), and the leakage rate in extreme working conditions is < 0.03%.
Q: What is the long lead time for cross-country delivery?
A: Own mold library + flexible production line, 48-hour response for urgent orders, full chain tracking by sea/air (98.6% on-time delivery rate for historical orders)
Q: Is it difficult to meet non-standard demands?
A: 10,000+ product database support, 72 hours to issue customized solutions (have provided radiator design for Atlas/Chigo/Kinko's etc.)

Prescription: Original 9S anti-leakage system

Our products are aimed at the pain point of easy leakage of construction machinery, adopting 9S advanced system, utilizing the most advanced cleaning equipment, and technicians with more than ten years of brazing experience, effectively achieving the effect of anti-leakage.

01. Anti-leakage test

15 minutes double Anti-leakage test.

02. Precise design

HTRI exchanger professional software anti-leakage design.

03. High standard material

German standard AIMg2.5 material, effectively extend the useful life.

04. Vacuum brazing

HAF70100,VW-S-1410 model brazing furnace, core anti-leakage process.

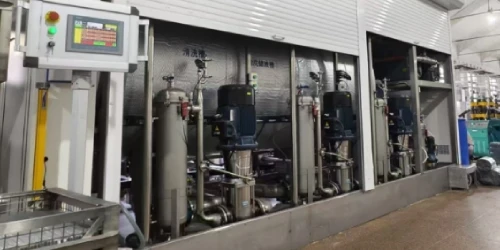

05. Deep cleaning

The fourth generation vacuum modified alcohol cleaning machine, advanced anti-leakage equipment.

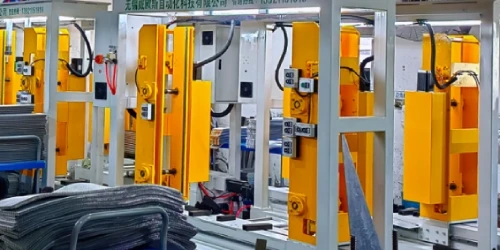

06. Automatic assembly

Automatic assembly machine, special anti-leakage equipment.

07. Three-in-one argon arc welding

Operated by welders masters with over 10 years of experience of professional anti-leakage technology.

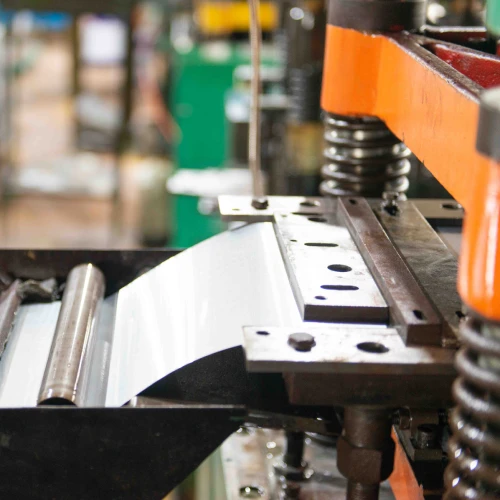

08. Zero tolerance fin puching molding

Fin forming machine(servo type) rm-d417, more accurate, more leak-proof.

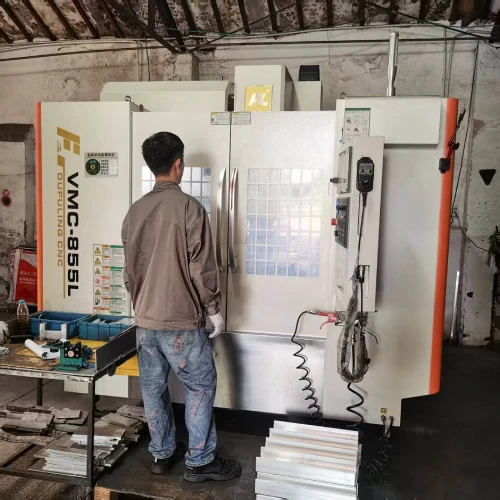

09. Automatic CNC machining center

CNC machining, high precision, low tolerance.
